Ultrasonic Wall Thickness Measurement
Ultrasonic thickness measurement techniques are used to measure a wide range of substrates and applications for loss of material thickness due to corrosion or erosion. Ultrasonic Thickness Gauges are designed for measuring the thickness of metallic (cast iron, steel, and aluminum) and non-metallic (ceramics, plastics, and glass) substrates and any other ultrasonic wave-conductor provided it has relatively parallel top and bottom surfaces.
An ultrasonic thickness gauge facilitates rapid inspection of the thickness of large metallic structures at small measurement intervals, providing a high-detail thickness map of a scanned surface. When access is only available from one side of the substrate, ultrasonic wall thickness measurement is the most efficient way to monitor the effects of erosion or corrosion and is instrumental to both quality assurance and quality control.
Ultrasonic Thickness Gauges – Corrosion
PosiTector UTG C Series
Corrosion probes measure the wall thickness of materials such as steel, plastic, and more. Ultrasonic Thickness Gauges are ideal for measuring the effects of corrosion or erosion on tanks, pipes, or any structure where access is limited to one side.
-
5 MHz dual element transducer
-
Our most popular ultrasonic thickness probes for measuring the effects of corrosion on steel substrates
-
Select from cabled, integral, and Xtreme probes
Thru-Paint UT Thickness Gauge
PosiTector UTG M

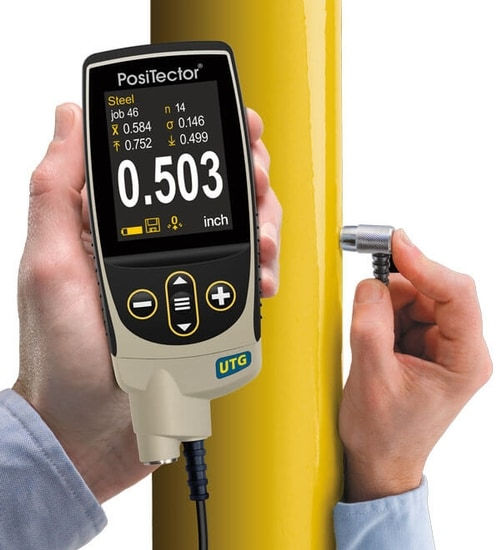

Ultrasonic Thickness Tester features Thru-Paint capability to quickly and accurately measure the metal thickness of a painted structure without having to remove the coating. Also ideal for measuring blasted materials and other applications requiring a more durable wear face.
-
5 MHz contact probe with wear resistant alumina probe tip and cabled probe
-
Multiple-Echo technique averages 3 or more echoes for accurate and reliable readings
-
Toggle between Single and Multiple-Echo modes
-
Multiple Echo mode eliminates coating thickness
-
Single Echo mode detects pits/flaws and increases measurement range
Ultrasonic Thickness Gauge – Cast Iron
PosiTector UTG CLF
Low frequency ultrasonic thickness probes measures the wall thickness of attenuative materials such as cast/ductile iron, cast aluminum, and cast zinc.
-
Low frequency 2.25 MHz dual element transducer with cabled probe
-
Proprietary algorithm distinguishes back wall reflections from grain noise (reflections) found in cast materials
-
Ideal for measuring attenuative materials such as cast iron
Precision UT Thickness Gauge
PosiTector UTG P
Precision Ultrasonic Thickness Meters are designed for high resolution measurements and thin materials including metals and plastics. Automatic Multi-Echo mode ensures the best accuracy on thin metals.
-
15 MHz Single element delay line with cabled probe
-
Automatic single-echo or multiple-echo mode depending on material thickness
-
Automatic probe tip temperature compensation
-
Ideal for thru-paint applications to quickly and accurately measure the metal thickness of a painted structure without having to remove the coating
-
Precision probe ideal for thin materials
-
Minimum steel measuring range: 0.008" (0.2 mm)
-
Minimum plastic measuring range: 0.005" (0.125 mm)
